            The widest range of Air Compressors and Spares Universal
            Simple but reliable world Standard Design with latest
            Technology gives high efficiency.

read more

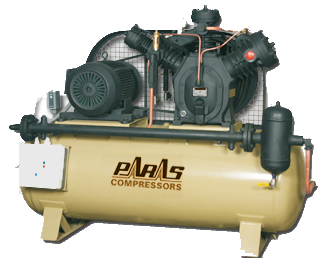

Multi Stage High Pressure Compressor

Multistage heavy duty air compressors are designed for high pressure operation up to 70.31 kg / cm²g (1000 psig). These compressors are used in Valve and System Testing, Diesel Engine Starting, Laboratory Test Work, Space and Aviation Industries, Air Blast Circuit Breaking, Dairy, Marine and Military Applications etc.

Technical Specifications :

Model	Motor HP	No. of Piston	P.D. C.F.M.	F.A.D. C.F.M.	Pressure PSIG	Bore x Stroke (Inch)	Receiver (Liter)
19-321	5	2	10.80	5	500	3&1.1/4 x 2.3/4	225/250
20-97T2	7.5	2	24.7	13	500	5&2 x 4	225/250
21-97T2	10	2	28	17	500	5&2 x 4	250/300
22-97T2	12.5	2	36	20	500	5&2 x 4	250/300
23-105T2	15	3	41.25	30	500	5.1/2&3&1.5/8 x 4	300/350/450
24-105T2	20	3	49.5	36	500	5.1/2&3&1.5/8 x 4	300/350/450
